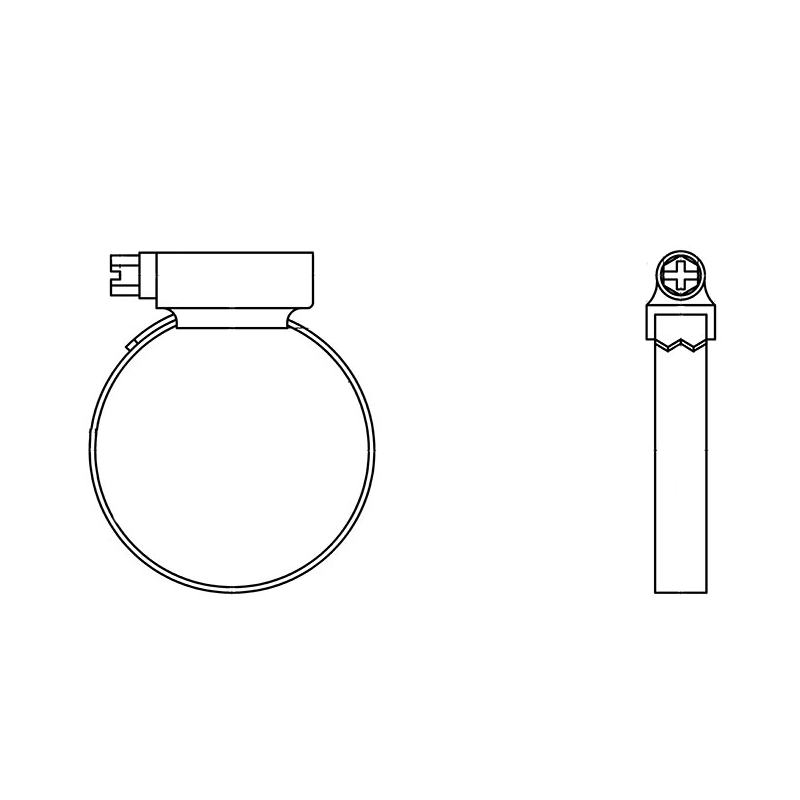

CHEMITOOL FASTENERS Hose Clamp DIN 3017 9mm Ø32-50 W1

With stock
FQ56032050
-Specially suitable for automotive industry,Refrigeration systems,Non-pressure fuel systems, pressure bullet and vents,Oil ducts,Duct bonding in sanitary applications.
-Pipe bonding in machine building applications.
-Pipelines in the appliance industry
-Flexible pipe conduits in commercial vehicle industries.
Add to cart 40,00 € and shipping is free
Clamps specially designed to join flexible pipes subject to high mechanical stress. Its asymmetric casing provides great strength, superior torque and an even distribution in the clamping pressure of the hose and ensuring optimum sealing of the connection, obtaining a high performance and compact clamp.
Ref
FQ56032050
EAN
5608907424407
Brand
CHEMITOOL FASTENERS
Finish
W1
Class
4.6
DIN
3017
Material
AÇO
Width
9 MM
Head length
20 MM
NF
E-27851
Groove width
1,2 MM
Height connecting portion
14 MM
Band
9 MM
Diameter minimum - maximum
32 - 50 MM
Width of the screw head
0,5-1 MM
Width connecting portion
14 MM
Groove depth
1,6 MM

CHEMITOOL FASTENERS


From A to Z, the CHEMITOOL FASTENERS offers a full range of innovate solutions - since tuning washers to cylindrical pins, from DIN 1 to DIN 82101, with sizes from M1x2 to M72x600.


See all product of CHEMITOOL FASTENERS

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
Clamps specially designed to join flexible pipes subject to high mechanical stress. Its asymmetric casing provides great strength, superior torque and an even distribution in the clamping pressure of the hose and ensuring optimum sealing of the connection, obtaining a high performance and compact clamp.

PRODUCTS DATA
Ref
FQ56032050
EAN
5608907424407
Brand
CHEMITOOL FASTENERS

SPECIFICATIONS
Finish
W1
Class
4.6
DIN
3017
Material
AÇO
Width
9 MM
Head length
20 MM
NF
E-27851
Groove width
1,2 MM
Height connecting portion
14 MM
Band
9 MM
Diameter minimum - maximum
32 - 50 MM
Width of the screw head
0,5-1 MM
Width connecting portion
14 MM
Groove depth
1,6 MM
Brand

CHEMITOOL FASTENERS


From A to Z, the CHEMITOOL FASTENERS offers a full range of innovate solutions - since tuning washers to cylindrical pins, from DIN 1 to DIN 82101, with sizes from M1x2 to M72x600.


See all product of CHEMITOOL FASTENERS
