PFERD BW 10 SE 11 DIN10/G28 Flexible Axles

Ready to Ship
4007220415702
- Flexible shafts include a core (SE), protective tube (SCH), and handpiece (HA);
- The core has 4-10 wire layers and needs relubrication after 100 hours;
- The protective tube is oil-resistant with a steel spiral;
- Handpieces are lightweight, low-noise, and support various speeds;
- Interchangeable collets and quick handpiece changes are possible.
equalizer Add to Compare
favorite_border Add to Wishlist
Share
Add to cart 40,00 € and shipping is free

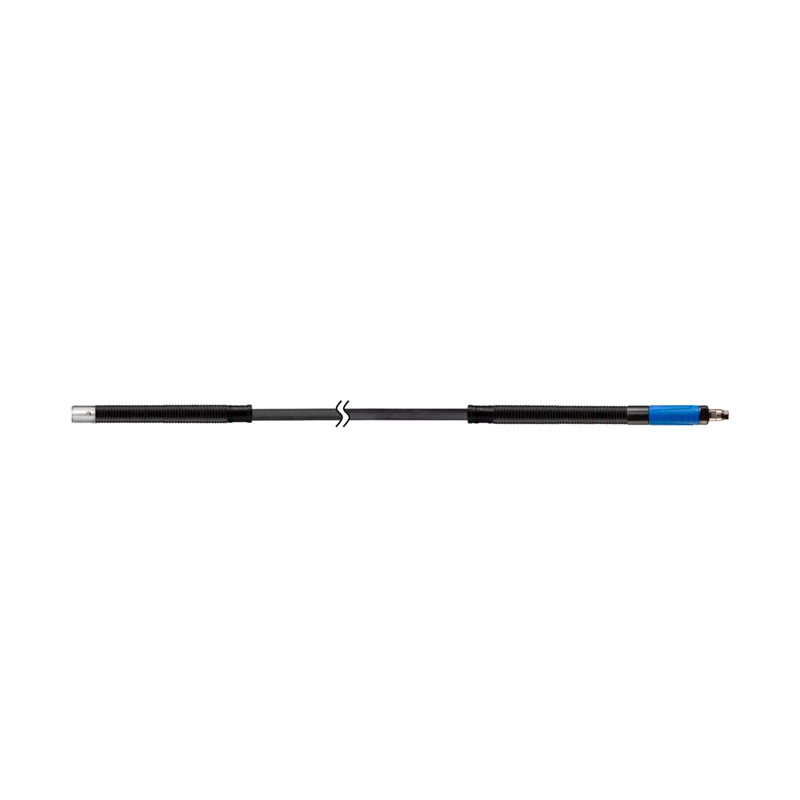

Flexible shafts consist of three components that can be combined in different ways: the flexible core (SE), the protective tube (SCH), the handpiece (HA).
The flexible core consists of four to ten layers of wire in accordance with DIN 2076, especially for high-speed clockwise rotation.The core coupling is firmly pressed on. After approx. 100 hours of operation, the core of a flexible shaft must be relubricated. The protective hose is made of oil-resistant rubber, with a flat steel spiral on the inside and solid rubber on the outside. The connection couplings are firmly pressed on and covered with rubber sleeves for reinforcement. The handpieces are light and handy and cover a wide speed range. In continuous operation, fatigue-free work is possible with low running noise. Interchangeable collets allow awide variety of tools to be accommodated. The sliding connection enables quick handpiece changes.

Flexible shaft including handpiece HA 10 G28.
Ref
4007220415702
EAN
4007220415702
Brand
BRALO
Lenght
1673 MM
Width
22 MM
Height
22 MM
Type
BW 10 SE 11 DIN10/G28
Weight
2,663 KG
Outer diameter
22 MM
RPM
750-18000 RPM

PFERD


PFERD has over 200 years of history,  is a leading brand is a leading brand in the development, manufacture and distribution of tools for finishing surfaces and cutting material.. Being internationally recognized for their know-how and quality, PFERD offers a range of products to meet the demands of the industrial market, including flexible and rigid abrasives, technical brushes, milling cutters, machines, lime, felts and oil.


See all product of PFERD

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
Flexible shafts consist of three components that can be combined in different ways: the flexible core (SE), the protective tube (SCH), the handpiece (HA).
The flexible core consists of four to ten layers of wire in accordance with DIN 2076, especially for high-speed clockwise rotation.The core coupling is firmly pressed on. After approx. 100 hours of operation, the core of a flexible shaft must be relubricated. The protective hose is made of oil-resistant rubber, with a flat steel spiral on the inside and solid rubber on the outside. The connection couplings are firmly pressed on and covered with rubber sleeves for reinforcement. The handpieces are light and handy and cover a wide speed range. In continuous operation, fatigue-free work is possible with low running noise. Interchangeable collets allow awide variety of tools to be accommodated. The sliding connection enables quick handpiece changes.

Flexible shaft including handpiece HA 10 G28.

PRODUCTS DATA
Ref
4007220415702
EAN
4007220415702
Brand
BRALO

SPECIFICATIONS
Lenght
1673 MM
Width
22 MM
Height
22 MM
Type
BW 10 SE 11 DIN10/G28
Weight
2,663 KG
Outer diameter
22 MM
RPM
750-18000 RPM
Brand

PFERD


PFERD has over 200 years of history,  is a leading brand is a leading brand in the development, manufacture and distribution of tools for finishing surfaces and cutting material.. Being internationally recognized for their know-how and quality, PFERD offers a range of products to meet the demands of the industrial market, including flexible and rigid abrasives, technical brushes, milling cutters, machines, lime, felts and oil.


See all product of PFERD
