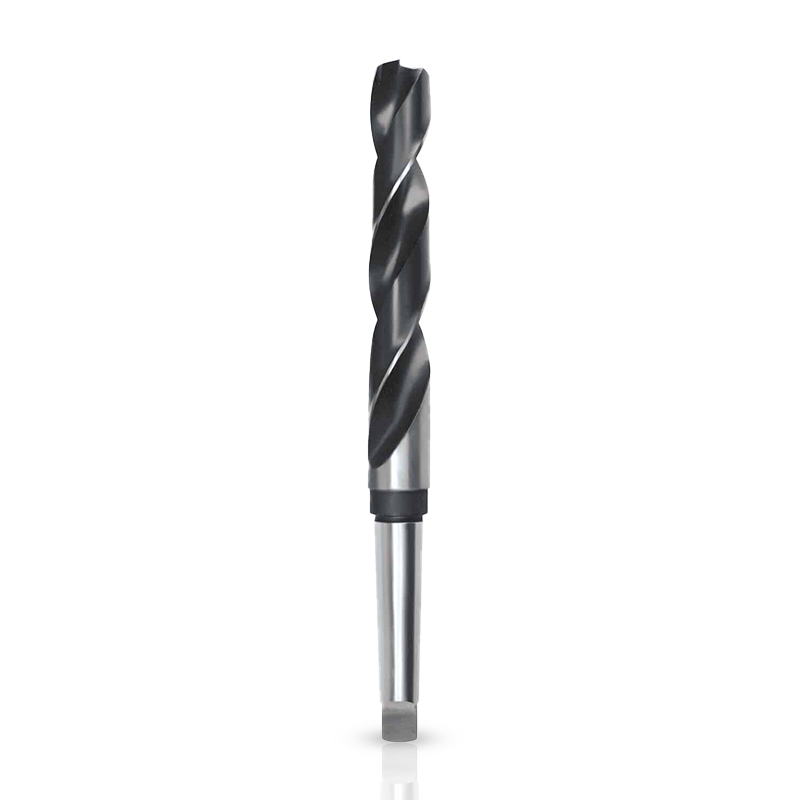

CHEMITOOL CUTTING 339X190MM Ø34 DIN345 HSS-G Morse Taper Spiral Fully Ground Drill Bit

Ready to Ship

CHA190534000000

- Fully ground;
- High drilling performance;
- Available from diameter 16,0 to 40mm;
- Excellent centering capability;
- Resistance to breakage;
- Long tool life;
- Morse taper shank (size 2 to 4);
- Material: High speed steel;
- Suitable for: Steel, aluminum and non-ferrous metals;
- Compatible machine: Bench drill machine.

Add to cart 40,00 € and shipping is free

The CHEMITOOL HSS drills were developed under careful manufacturing processes, in order to provide the professional with an excellent relation of quality and performance in metal drilling.This drill is distinguished by its excellent quality/value ratio.
The CHEMITOOL HSS drill is made entirely of high-speed steel, prepared for drilling in metals with a hardness up to 800N/mm2, according to DIN 345.
The main characteristic of this metal spiral drill bit its drilling, which can be used for widening or countersinking thanks to its118º attack angle.
The use of lubrication in the drilling process will increase the service life and reduce the heating of the drill, this applicationshould not be forgotten when drilling materials with a high hardness and abrasion.

Ref: CHA190534000000
EAN: 5604630073035
Brand: VERTEX

Diameter: 34 MM
Total length: 339 MM
Useful length: 190 MM

CHEMITOOL CUTTING

CHEMITOOL CUTTING offers solutions for your surface finishing and material cutting operations. Such as velcro discs, flap discs, grinding discs, among others.

See all product of CHEMITOOL CUTTING

Generate Product Datasheet - PDF

Safety payments
Worldwide shipping
Returns within 14 days

The CHEMITOOL HSS drills were developed under careful manufacturing processes, in order to provide the professional with an excellent relation of quality and performance in metal drilling.This drill is distinguished by its excellent quality/value ratio.
The CHEMITOOL HSS drill is made entirely of high-speed steel, prepared for drilling in metals with a hardness up to 800N/mm2, according to DIN 345.
The main characteristic of this metal spiral drill bit its drilling, which can be used for widening or countersinking thanks to its118º attack angle.
The use of lubrication in the drilling process will increase the service life and reduce the heating of the drill, this applicationshould not be forgotten when drilling materials with a high hardness and abrasion.

Ref: CHA190534000000
EAN: 5604630073035
Brand: VERTEX

Diameter: 34 MM
Total length: 339 MM
Useful length: 190 MM

Brand

CHEMITOOL CUTTING

CHEMITOOL CUTTING offers solutions for your surface finishing and material cutting operations. Such as velcro discs, flap discs, grinding discs, among others.

See all product of CHEMITOOL CUTTING

Generate Product Datasheet - PDF

Safety payments
Worldwide shipping
Returns within 14 days

Datasheet \ Reference CHA190534000000

CHEMITOOL CUTTING 339X190MM Ø34 DIN345 HSS-G Morse Taper Spiral Fully Ground Drill Bit

Description

- Fully ground;
- High drilling performance;
- Available from diameter 16,0 to 40mm;
- Excellent centering capability;
- Resistance to breakage;
- Long tool life;
- Morse taper shank (size 2 to 4);
- Material: High speed steel;
- Suitable for: Steel, aluminum and non-ferrous metals;
- Compatible machine: Bench drill machine.

PRODUCTS DATA

Ref	CHA190534000000
EAN	5604630073035
Brand	VERTEX

SPECIFICATIONS

Diameter	34 MM
Total length	339 MM
Useful length	190 MM
