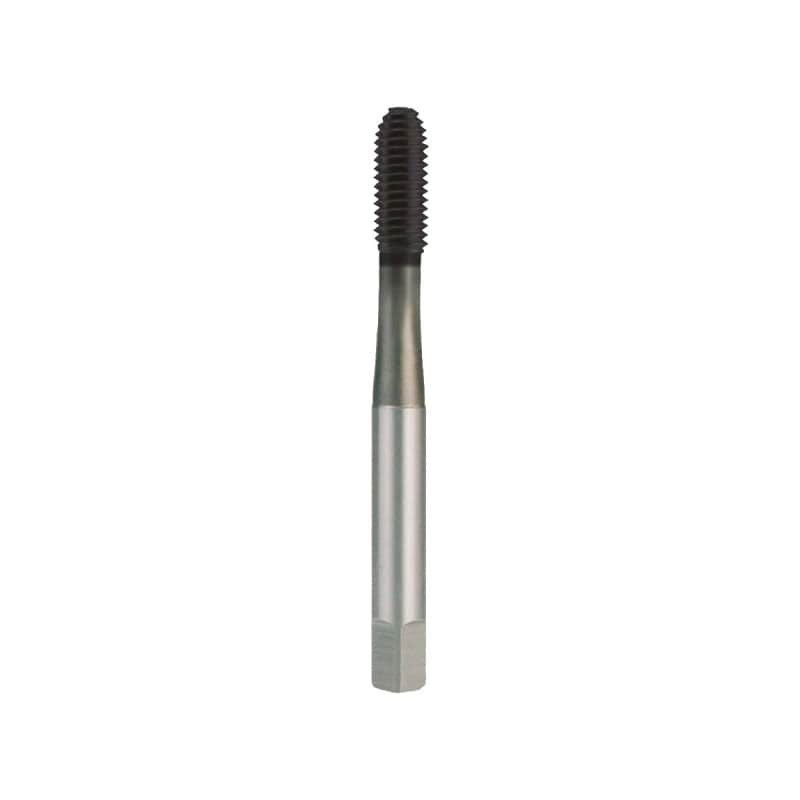

RUKO Definition Thread Male DIN 2174 HSS-Co 5 TiAlN, Rectified (M6)

Ready to Ship
R271006F
- Main application Steel (N / mm²) <800, steel (N / mm²) <1000, steel (N / mm²) <1200, stainless steel and brass

- Secondary application Aluminum, bronze, plastics, cast iron and titanium alloy
equalizer Add to Compare
favorite_border Add to Wishlist
Share
Add to cart 40,00 € and shipping is free
- Screwdriving thread with reinforced rod for through threads and threads for blind holes.
- Threads: mast DIN ISO 13
- Flanks: with posterior grinding
- When shaping without cutting, there is no interruption in the orientation of the fibers of the material.
- Due to deformation there are very rigid thread steps.
- There is also homogeneous precision in case of increased productivity.

HSS CO 5-TiAlN
- High performance steel threaded male with high potency of cobalt alloy coated with titanium aluminum nitride.
- Areas of use: steels with and without alloy up to 1000 N / mm² resistance, V2A and non-ferrous metals
Ref
R271006F
EAN
4007140129062
ASIN code
B00GTQ2WEG
Lenght
80,0 MM
Diameter
5,55 MM
Useful length
19,0 MM
Diameter 2
6,0 MM
Gradient
1,00 MM
Screw thread
M6

RUKO


Since 1974, RUKO has specialized in the production of drilling and cutting tools.Taking into account the needs of the industry professionals, Ruko has high quality and precision tools, comprising a sufficient range of products, including drills, milling cutters, saw blades and threads.


See all product of RUKO

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- Screwdriving thread with reinforced rod for through threads and threads for blind holes.
- Threads: mast DIN ISO 13
- Flanks: with posterior grinding
- When shaping without cutting, there is no interruption in the orientation of the fibers of the material.
- Due to deformation there are very rigid thread steps.
- There is also homogeneous precision in case of increased productivity.

HSS CO 5-TiAlN
- High performance steel threaded male with high potency of cobalt alloy coated with titanium aluminum nitride.
- Areas of use: steels with and without alloy up to 1000 N / mm² resistance, V2A and non-ferrous metals

PRODUCTS DATA
Ref
R271006F
EAN
4007140129062
ASIN code
B00GTQ2WEG

SPECIFICATIONS
Lenght
80,0 MM
Diameter
5,55 MM
Useful length
19,0 MM
Diameter 2
6,0 MM
Gradient
1,00 MM
Screw thread
M6
Brand

RUKO


Since 1974, RUKO has specialized in the production of drilling and cutting tools.Taking into account the needs of the industry professionals, Ruko has high quality and precision tools, comprising a sufficient range of products, including drills, milling cutters, saw blades and threads.


See all product of RUKO
