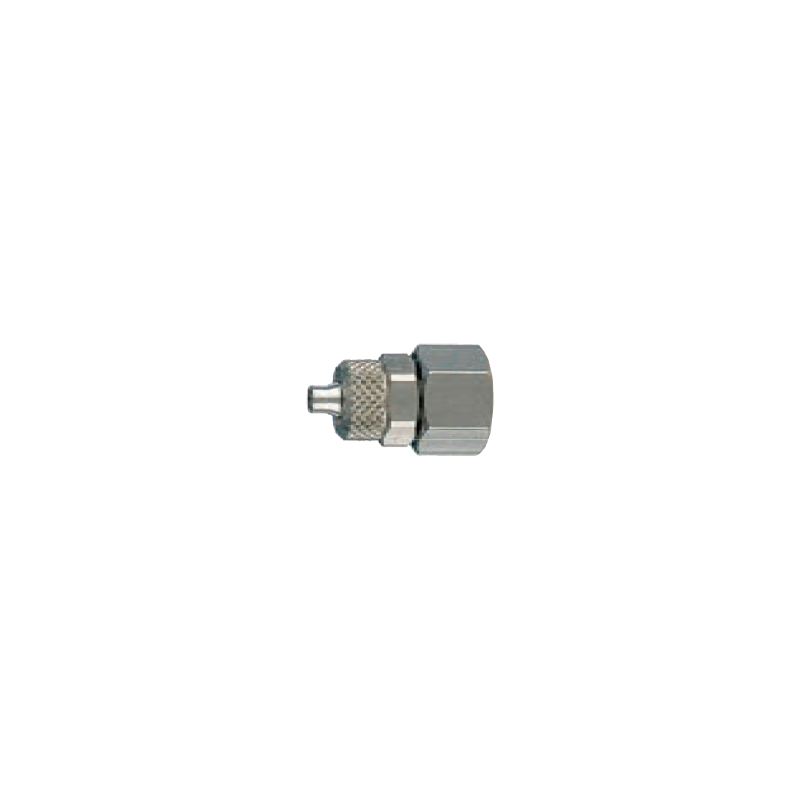

ANi Female Threaded Straight Adaptor 1/4M ø 8 x 6 mm

Ready to Ship
AH036302
- Cylindrical female thread - ISO 228 (BSPP).
Add to cart 40,00 € and shipping is free
- Fields of application: Pneumatic, oleodynamic and hydraulic circuits;
- Operating pressure: The maximum operating pressure depends on the pipe characteristics. Maximum pressure 16 bar (1;6 MPa);
- Operating temperature: -10°C (263°K) ÷+80°C (353°K);
- Pipes to be connected: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0,05 (ø 4÷ø10) - ±0,1 (ø12 ÷ ø 14);
- Materials used: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMA-15 (UNI EN 1774:99);
- Thread: Gas conical thread with PTFE ISO 7 (BSPT) - DIN 2999 - BS 21; Cylindrical gas thread - ISO 228 (BSPP);
- The products comply with the 2002/95/EG – RoHS directive.
Ref
AH036302
EAN
8022219004466
Brand
38
Thread height
11 MM
Diameter
8 X 6 MM
Shackle
1/4M
Weight
23 G

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- Fields of application: Pneumatic, oleodynamic and hydraulic circuits;
- Operating pressure: The maximum operating pressure depends on the pipe characteristics. Maximum pressure 16 bar (1;6 MPa);
- Operating temperature: -10°C (263°K) ÷+80°C (353°K);
- Pipes to be connected: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0,05 (ø 4÷ø10) - ±0,1 (ø12 ÷ ø 14);
- Materials used: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMA-15 (UNI EN 1774:99);
- Thread: Gas conical thread with PTFE ISO 7 (BSPT) - DIN 2999 - BS 21; Cylindrical gas thread - ISO 228 (BSPP);
- The products comply with the 2002/95/EG – RoHS directive.

PRODUCTS DATA
Ref
AH036302
EAN
8022219004466
Brand
38

SPECIFICATIONS
Thread height
11 MM
Diameter
8 X 6 MM
Shackle
1/4M
Weight
23 G
Brand

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI
