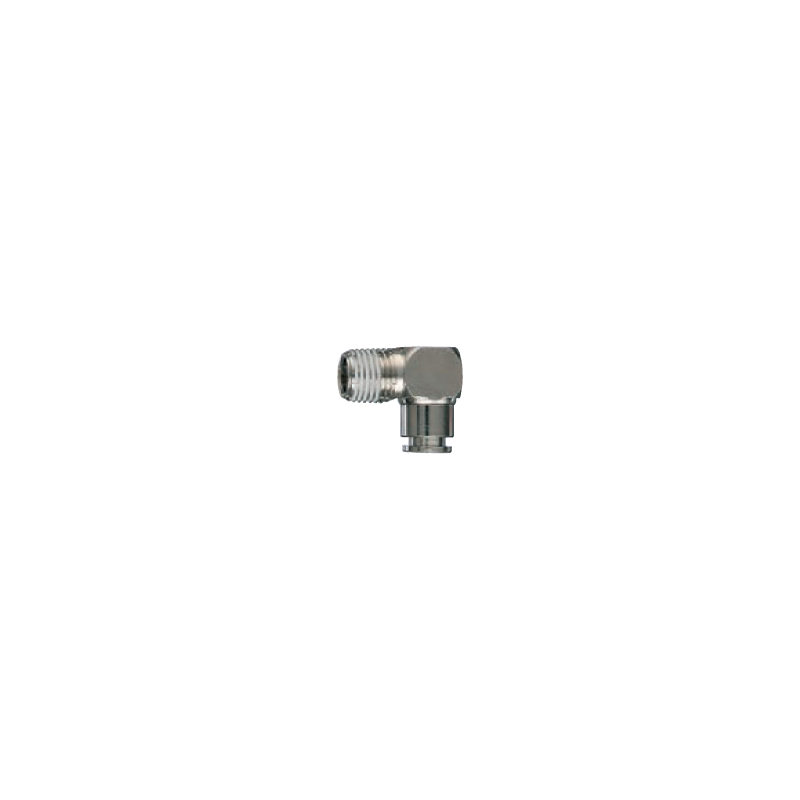

ANi Male Threaded Elbow Fitting 50/C 1/4 M ø 10 mm

Ready to Ship
AH037306
- Conical male thread ISO 7 (BSPT)- DIN 2999- BS 21 with PTFE.
Add to cart 40,00 € and shipping is free
FIELDS OF APPLICATION: Pneumatic circuits;
OPERATING PRESSURE:
- The maximum operating pressure depends on the pipe characteristics;
- Maximum pressure 16 bar (1.6 MPa);
OPERATING TEMPERATURE: -10°C (263°K) ÷ +80°C (353°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) ±0,05 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 14);
MATERIALS USED: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMAK-15 (UNI EN 1774: 99);
O-RINGS/WASHERS: Oil-resistant, silicone-free NBR washers;
THREAD:
- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;
- Cylindrical gas THREAD: - ISO 228 (BSPP);
The products comply with the 2002/95/EG – RoHS directive.
Ref
AH037306
EAN
8022219161657
Brand
38

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
FIELDS OF APPLICATION: Pneumatic circuits;
OPERATING PRESSURE:
- The maximum operating pressure depends on the pipe characteristics;
- Maximum pressure 16 bar (1.6 MPa);
OPERATING TEMPERATURE: -10°C (263°K) ÷ +80°C (353°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) ±0,05 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 14);
MATERIALS USED: Nickel-plated brass (UNI EN 12164 CW 614N), Nickel-plated ZAMAK-15 (UNI EN 1774: 99);
O-RINGS/WASHERS: Oil-resistant, silicone-free NBR washers;
THREAD:
- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;
- Cylindrical gas THREAD: - ISO 228 (BSPP);
The products comply with the 2002/95/EG – RoHS directive.

PRODUCTS DATA
Ref
AH037306
EAN
8022219161657
Brand
38
Brand

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

Attachments
Reviews
Reassurance
  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days
