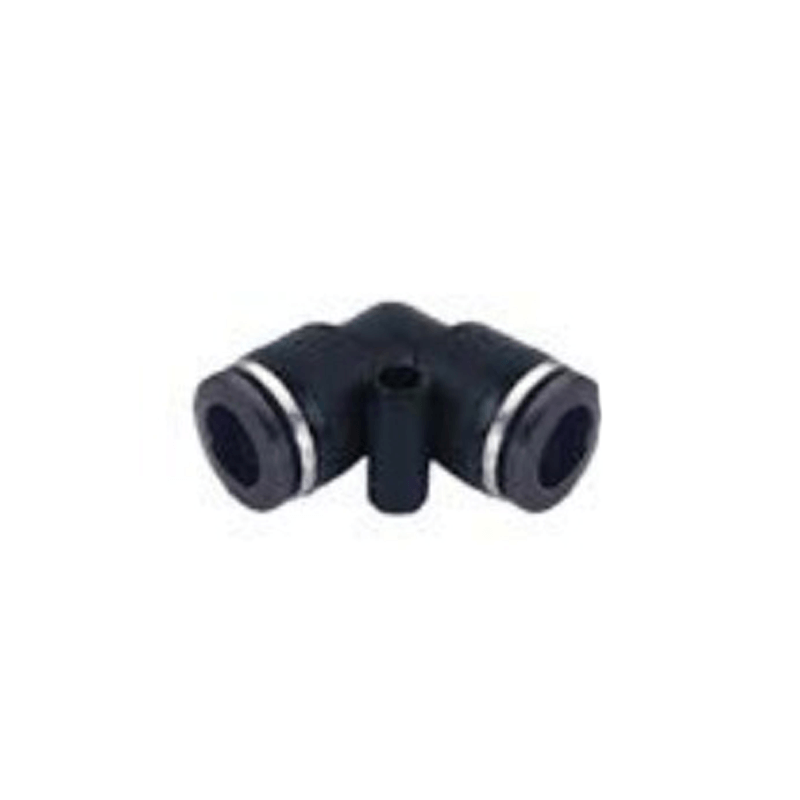

ANi Elbow Connector 35/C ø 12 mm

Available
AH0390205A
- Resin push in fittings.
Add to cart 40,00 € and shipping is free
FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
OPERATING PRESSURE: 10 bar (1 MPa);
OPERATING TEMPERATURE: 0°C (273°K) ÷ +60°C (333°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) : ±0,5 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 16);
MATERIALS USED: Nickel-plated Brass (EN 12164- CW614N)- Black Technopolymer- Stainles steel pliers;
O-RINGS/WASHERS: Oil-resistant, NBR washers;
THREAD:
- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;
- Cylindrical gas thread- ISO 228 (BSPP).
Ref
AH0390205A
EAN
8022219455800
Brand
38

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
OPERATING PRESSURE: 10 bar (1 MPa);
OPERATING TEMPERATURE: 0°C (273°K) ÷ +60°C (333°K);PIPES TO BE CONNECTED: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6) : ±0,5 (ø 4÷ø10)- ±0,1 (ø12 ÷ ø 16);
MATERIALS USED: Nickel-plated Brass (EN 12164- CW614N)- Black Technopolymer- Stainles steel pliers;
O-RINGS/WASHERS: Oil-resistant, NBR washers;
THREAD:
- Gas conical thread with PTFE- ISO 7 (BSPT)- DIN 2999- BS 21;
- Cylindrical gas thread- ISO 228 (BSPP).
