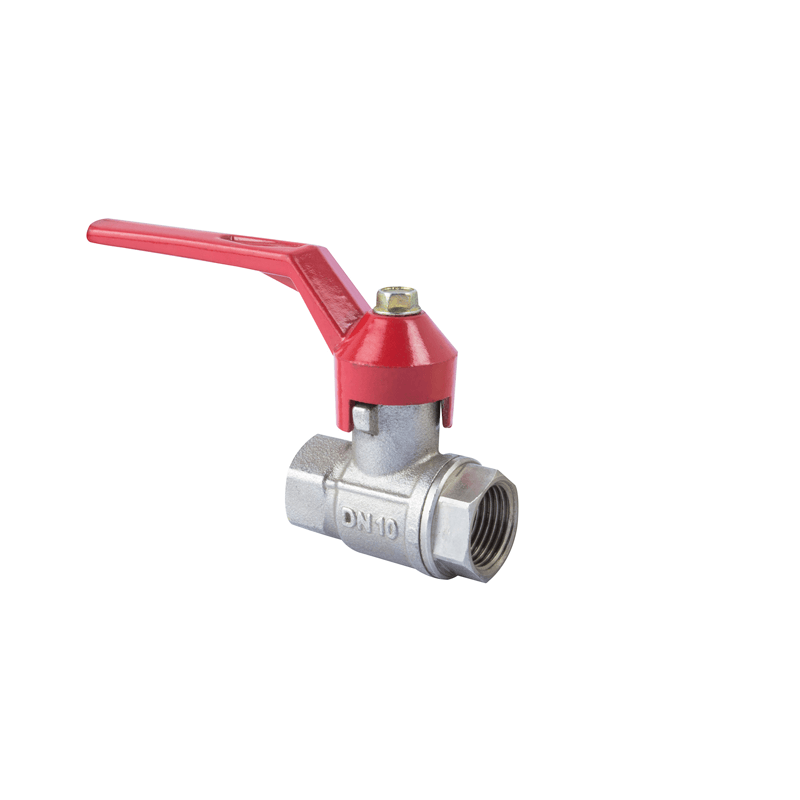

- INSTRUCTIONS: Valve open position: the lever is parallel to the body; Valve close position: the lever is perpendicular to the body;
- FIELDS OF APPLICATION: Pneumatic, oleodynamic and hydraulic circuits;
- PRESSURE: Maximum pressure 20 bar;
- OPERATING TEMPERATURE: -10°C (263°K), +120°C (393°K);
- MATERIALS USED: Body/Sleeve: Nickel-plated brass (UNI EN 12164 CW 614N); Shaft: Brass (UNI EN 12164 CW 614N); Ball: Chrome-platedBrass (UNI-EN 12164 CW614N); O-Ring: NBR 70; Ball seat seal washers: PTFE; Lever: Aluminium EN-AB46100; Seeger snap ring: Bronze; Screw: Zinc-plated steel;
- SURFACE TREATMENT: Chrome plating;
- THREAD: Cylindrical gas thread - ISO 228 (BSPP)Gas conical thread - ISO 7 (BSPT) - DIN 2999 - BS 21;
- These valves comply with the PED Directive (97/23 EC).
- Ref
- AH041601
- EAN
- 8022219006552
- Brand
- 38
- Shackle
- 3/8F
- Weight
- 113 G
- Model
- 14/MD
ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.
