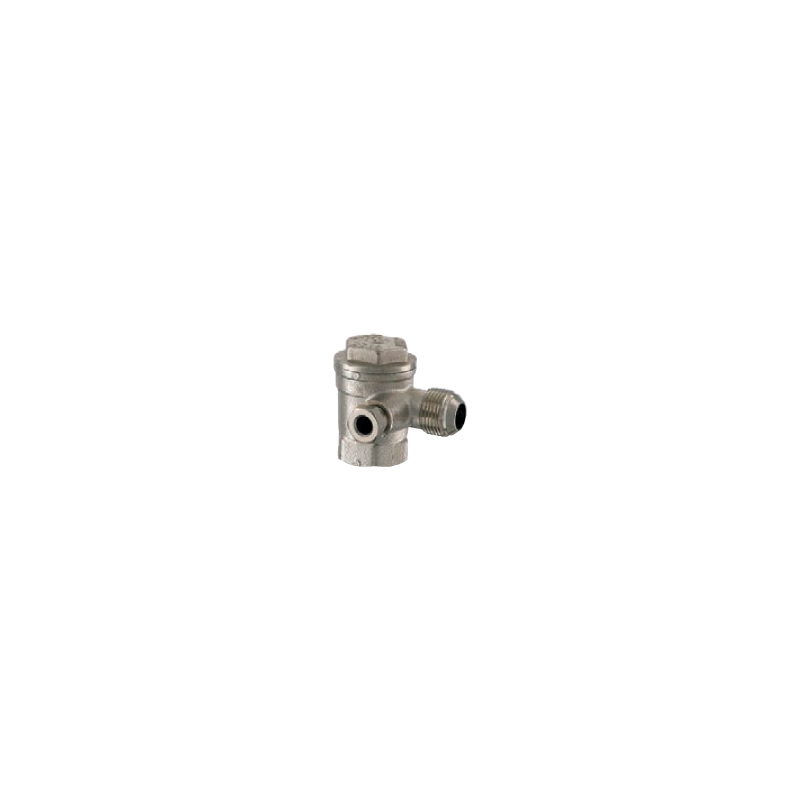

ANi Vertical Non Return Valve 24/C

Ready to Ship
AH042005
- Male/Female thread;
- Sealing element:24 NBR, 24/C-24/D VITON.
Add to cart 40,00 € and shipping is free
- FIELDS OF APPLICATION: Non return valves are perfect for producer of air compressors; To meet market requirements, non return valves are produced in the horizontal and vertical versions; The technical features and the materials used ensure a high level of reliability and a excellent resistance to the high pneaumatic temperatures to which they are subject; The laboratory tests on non return valves were carried out by the ISTITUTO AUTORIZZATO-TEST CERTIFICATE No; 4714; The tables with the test results are available at ourheadquarters;
MATERIALS USED:
- Body/Plug: Brass UNI EN 12164 CW 614N; Brass UNI EN 12164 CW 614N;
- Sealing element: VITON - 85 Shore;
- Valve pad operating temperature: 200°C; NBR - Anti-heat rubber - oil-resistant - 80 Shore; Valve pad operating temperature: 130 °C;
- Springs: STAINLESS STEEL - AISI 302;
- Body/plug seal: Annealed ALUMINIUM or NBR-OR temperature resistance 130° C;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Gas conical thread - ISO 7 (BSPT) - DIN 2999 - BS 21;
- NOMI
Ref
AH042005
EAN
8022219007429
Brand
38
Thread height
12,5 MM
Weight
227 G
Model
24/C
Shackle
1/2F
3/8M

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- FIELDS OF APPLICATION: Non return valves are perfect for producer of air compressors; To meet market requirements, non return valves are produced in the horizontal and vertical versions; The technical features and the materials used ensure a high level of reliability and a excellent resistance to the high pneaumatic temperatures to which they are subject; The laboratory tests on non return valves were carried out by the ISTITUTO AUTORIZZATO-TEST CERTIFICATE No; 4714; The tables with the test results are available at ourheadquarters;
MATERIALS USED:
- Body/Plug: Brass UNI EN 12164 CW 614N; Brass UNI EN 12164 CW 614N;
- Sealing element: VITON - 85 Shore;
- Valve pad operating temperature: 200°C; NBR - Anti-heat rubber - oil-resistant - 80 Shore; Valve pad operating temperature: 130 °C;
- Springs: STAINLESS STEEL - AISI 302;
- Body/plug seal: Annealed ALUMINIUM or NBR-OR temperature resistance 130° C;
- SURFACE TREATMENT: Nickel plating;
- THREAD: Gas conical thread - ISO 7 (BSPT) - DIN 2999 - BS 21;
- NOMI

PRODUCTS DATA
Ref
AH042005
EAN
8022219007429
Brand
38

SPECIFICATIONS
Thread height
12,5 MM
Shackle
1/2F
3/8M
Weight
227 G
Model
24/C
Brand

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI
