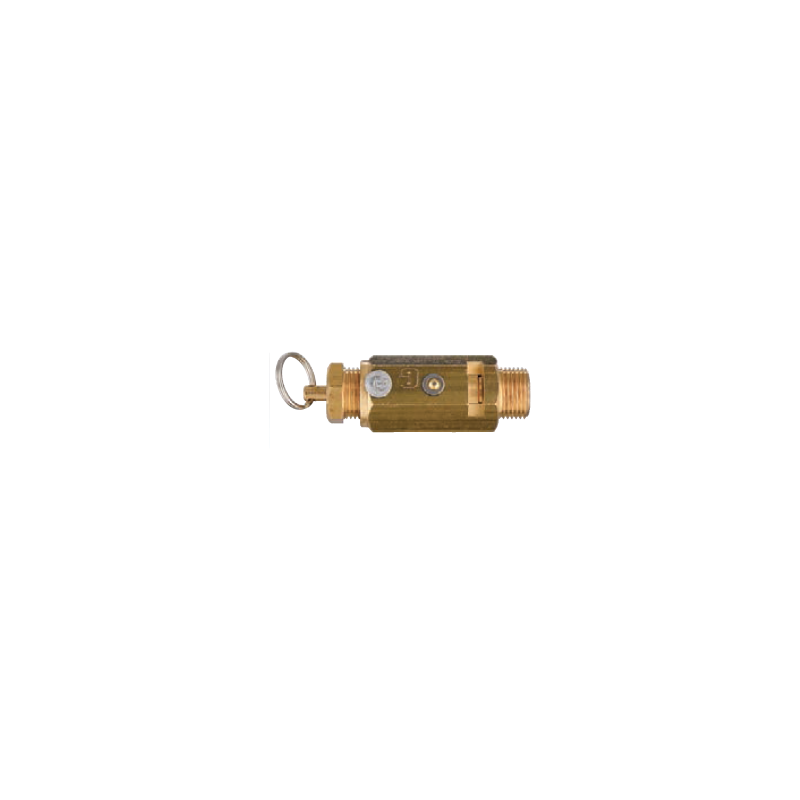

ANi Full Opening Safety Valve PED Certified 22/B/O

Ready to Ship
AH043401
- Certificate of Conformity PED 97/23 directive;
- Standard calibration 12 bar.
equalizer Add to Compare
favorite_border Add to Wishlist
Share
Buy more 40,00 € and shipping is free
- Ordinary safety valves; The technical identification data are shown on the plate; The mechanical locking of the calibration is given by means of a pre-applied product; The valve is irremovable thanks to the punching process and it has passed with good results the final calibration control as well as the hydraulic test at 37;5 BAR; The valves are produced in compliance with the ISO 4126/1 standard;
- FIELDS OF APPLICATION: Air, gas, vapour; MATERIALS USED:
- Valve body/Shutter/Needle/Ring: Brass UNI EN 12164 CW 614N;
- Seal washer: NBR (VITON on request);
- Spring: Steel C4C UNI/EN 10263;
- Needle: Steel CB4 UNI 7356-74, brass UNI EN 12164 CW 614N;
- Plate: Aluminium - Ring: Steel C75;
- OPERATING TEMPERATURE: NBR -10°C (253°K), +90°C (343°K) VITON -10°C (253°K), +250°C (523°K);
- THREAD: Cylindrical gas thread - ISO 228 (BSPP);
- NOMINAL PRESSURE: Nominal pressure: 16 BAR;
- CALIBRATION: Standard calibration 12 bar; Different calibrations (depending on the quantity) on request - calibration range: from0
Ref
AH043401
EAN
8022219203395
Brand
ANI
Weight
140 G
Diameter
10 MM
Model
22/B/O
Flowrate
5093 L/MIN
Shackle
3/8

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- Ordinary safety valves; The technical identification data are shown on the plate; The mechanical locking of the calibration is given by means of a pre-applied product; The valve is irremovable thanks to the punching process and it has passed with good results the final calibration control as well as the hydraulic test at 37;5 BAR; The valves are produced in compliance with the ISO 4126/1 standard;
- FIELDS OF APPLICATION: Air, gas, vapour; MATERIALS USED:
- Valve body/Shutter/Needle/Ring: Brass UNI EN 12164 CW 614N;
- Seal washer: NBR (VITON on request);
- Spring: Steel C4C UNI/EN 10263;
- Needle: Steel CB4 UNI 7356-74, brass UNI EN 12164 CW 614N;
- Plate: Aluminium - Ring: Steel C75;
- OPERATING TEMPERATURE: NBR -10°C (253°K), +90°C (343°K) VITON -10°C (253°K), +250°C (523°K);
- THREAD: Cylindrical gas thread - ISO 228 (BSPP);
- NOMINAL PRESSURE: Nominal pressure: 16 BAR;
- CALIBRATION: Standard calibration 12 bar; Different calibrations (depending on the quantity) on request - calibration range: from0

PRODUCT DATA
Ref
AH043401
EAN
8022219203395
Brand
ANI

SPECIFICATIONS
Weight
140 G
Diameter
10 MM
Model
22/B/O
Flowrate
5093 L/MIN
Shackle
3/8
Brand

ANI


ANI is known worldwide for the production and sale of accessories for compressed air as well as paint spray guns. ANI is a world leader in the compressed air market where it has been present for 50 years. It has a product range for car body shops, car repair, wood industry, building, tool-making such as lubricators, filters and pressure regulators, among other tools and hardware.


See all product of ANI
