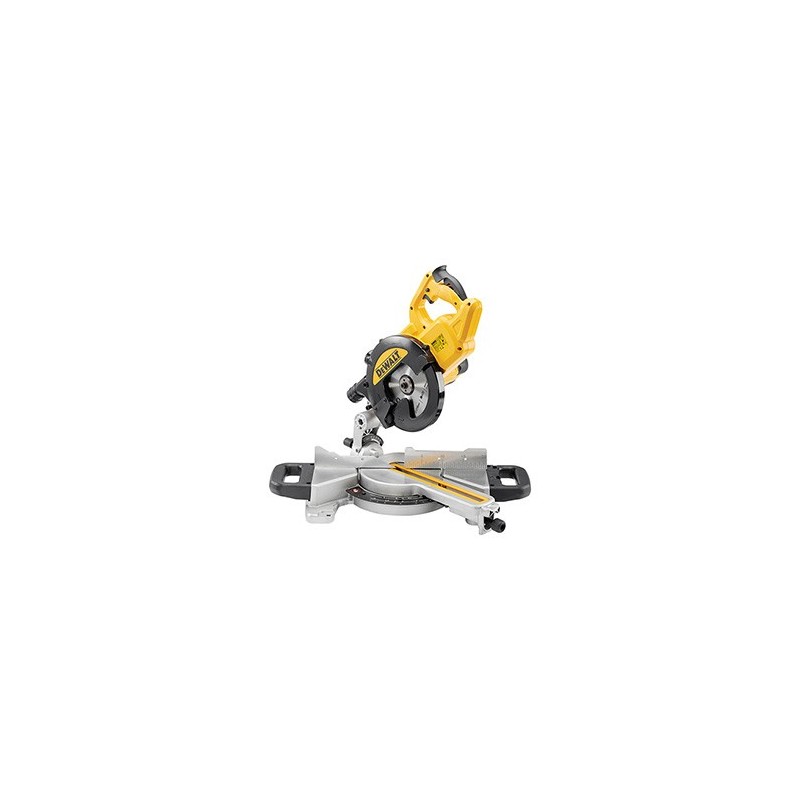

DeWalt 1400W Ø216mm Mitre Saw

With stock
DWS774

The classic saw design improved and updated for the modern user;

-New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only);

-XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.

Price/UN: 370,11 €


Add to cart 40,00 € and shipping is free

The classic saw design improved and updated for the modern user;

-New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only);

-XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required;

-Improved Dust extraction efficiency;

-The base and fence have been machined to meet the accuracy requirements of the most demanding applications;

-New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation;

-Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°;

-Fixed left & right hand fences with measuring scale for improved material support and management;

-Compact internal rail design for huge cutting capacity in a highly transportable format;

-Carry side handles for east transportation;

-Designed for wood cutting only and must not be used to cut any metal (Ferrous

Ref
DWS774
EAN
5035048614099
Brand
DEWALT
Weight
12,0 KG
Lenght
490 MM
Maximum cutting depth
70 MM
Blade diameter
216 MM
Height
590 MM
Bore size
30 MM
Power input
1400 W
Acoustics pressure
104 DB(A)
RPM
4500 RPM
Sound pressure
93 DB(A)
Uncertainty K1 (vibration)
1,5 M/S²
Uncertainty K2 (sound)
3,9 DB(A)
Power output
1100 W
Uncertainty K3 (sound)
3,0 DB(A)
Maximum Bevel Angle [º]
48 °
Cutting Capacity at 45º/45º
190 X 48 MM
Cutting Capacity 45°/90° (WxH)
177 X 62 MM
Cutting Capacity 90°/45° (WxH)
173 X 62 MM
Cutting Capacity 90°/90° (WxH)
250 X 62 MM
Mitre Capacity (right/left)
48 / 48 °
Depth
550 MM
Hand/Arm Vibration-wood
2,1 M/S²
ZMM_EQPSTD1_EN
TCT TOOTH SAW BLADE
ZMM_EQPSTD2_EN
MATERIAL CLAMP
ZMM_EQPSTD3_EN
BLADE ALLEN KEYS

DEWALT POWER-TOOLS


DEWALT is a market leader in power tools. With an extensive range of products, the American brand provides solutions for construction, manufacturing and wood industries. Ensuring their quality and reliability standards, Dewalt Power Tools and Accessories meet all occasions and needs like drills, screwdrivers, angle grinders, among others.


See all product of DEWALT POWER-TOOLS

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description

The classic saw design improved and updated for the modern user;

-New 1400 Watt motor for powerful cutting in all materials (1400 Watt Low Voltage version UK Only);

-XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required;

-Improved Dust extraction efficiency;

-The base and fence have been machined to meet the accuracy requirements of the most demanding applications;

-New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation;

-Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°;

-Fixed left & right hand fences with measuring scale for improved material support and management;

-Compact internal rail design for huge cutting capacity in a highly transportable format;

-Carry side handles for east transportation;

-Designed for wood cutting only and must not be used to cut any metal (Ferrous


PRODUCTS DATA
Ref
DWS774
EAN
5035048614099
Brand
DEWALT

SPECIFICATIONS
Weight
12,0 KG
Lenght
490 MM
Maximum cutting depth
70 MM
Blade diameter
216 MM
Height
590 MM
Bore size
30 MM
Power input
1400 W
Acoustics pressure
104 DB(A)
RPM
4500 RPM
Sound pressure
93 DB(A)
Uncertainty K1 (vibration)
1,5 M/S²
Uncertainty K2 (sound)
3,9 DB(A)
Power output
1100 W
Uncertainty K3 (sound)
3,0 DB(A)
Maximum Bevel Angle [º]
48 °
Cutting Capacity at 45º/45º
190 X 48 MM
Cutting Capacity 45°/90° (WxH)
177 X 62 MM
Cutting Capacity 90°/45° (WxH)
173 X 62 MM
Cutting Capacity 90°/90° (WxH)
250 X 62 MM
Mitre Capacity (right/left)
48 / 48 °
Depth
550 MM
Hand/Arm Vibration-wood
2,1 M/S²

STANDARD EQUIPMENT
ZMM_EQPSTD1_EN
TCT TOOTH SAW BLADE
ZMM_EQPSTD2_EN
MATERIAL CLAMP
ZMM_EQPSTD3_EN
BLADE ALLEN KEYS
Brand

DEWALT POWER-TOOLS


DEWALT is a market leader in power tools. With an extensive range of products, the American brand provides solutions for construction, manufacturing and wood industries. Ensuring their quality and reliability standards, Dewalt Power Tools and Accessories meet all occasions and needs like drills, screwdrivers, angle grinders, among others.


See all product of DEWALT POWER-TOOLS
