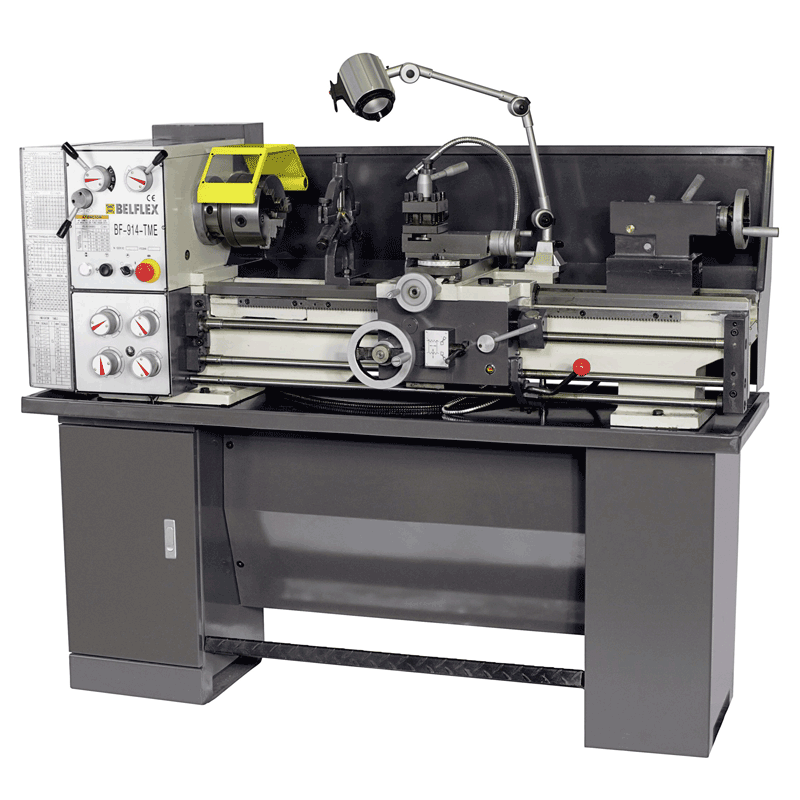

BELFLEX Industrial Machine for Metal BF-914-TME

Ready to Ship
AB441085000
Included accessories:
- 3 jaws Chuck Ø160 mm;
- 4 jaws Chuck Ø200 mm;
- Faceplate;
- MT-3 Chuck Drills;
- MT-3 Revolving Centre;
- MT-3 Centre;
- Follow & Steady rest;
- Kit of Tools;
- Work lamp and cooling system;
- Stand.
equalizer Add to Compare
favorite_border Add to Wishlist
Share
Add to cart 40,00 € and shipping is free
- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- With rear chip guard, Coolant pump, foot brake, automatic gear box with gears in oil bath;
- Spindle with conical roller bearings, hardened bedways;
- Limit micro switch in cover and chuck guard;
- Automatic longitudinal and cross travel.
Ref
AB441085000
EAN
8423640961753
ASIN code
B01KOMZ2X8
Brand
RYOBI
Weight
480 KG
Dimensions
1680 X 750 X 1470 MM
Speed change
ENGRENAGEM
Taper of tailstock sleeve
MT3
Diameter tailstock sleev
32 MM
Max. swing over bed
310 MM
Max. swing over gap
450 MM
Max. swing over cross slide
180 MM
Distance between centres
910 MM
Long. feeds range
0,0527-1,2912 MM/REV.
Cross feeds range
0,014-0,3448 MM/REV.
Metric threads range
32 TIPOS/ 0,4-7 MM
Inch threads range
36 TIPOS/ 4-60 TPI
Spindle bore
38 MM
Travel tailstock sleeve
100 MM
Number of speeds
18
Taper spindle bore
MT5
Power input
1,1 KW - 1,5 HP
Spindle speed range
65-1810 RPM
DRO X-Y
NÃO
Voltage
400V-F3

BELFLEX


BELFLEX is an Abratools company's brand specializing in abrasive discs. With a great capacity to adapt to the market needs for over 30 years, BELFLEX is synonymous of quality.


See all product of BELFLEX

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- Metalworking lathes for professional purposes, of robust design, equipped with prismatic, rolled and rectified bed ways;
- With rear chip guard, Coolant pump, foot brake, automatic gear box with gears in oil bath;
- Spindle with conical roller bearings, hardened bedways;
- Limit micro switch in cover and chuck guard;
- Automatic longitudinal and cross travel.

PRODUCTS DATA
Ref
AB441085000
EAN
8423640961753
ASIN code
B01KOMZ2X8
Brand
RYOBI

SPECIFICATIONS
Weight
480 KG
Dimensions
1680 X 750 X 1470 MM
Speed change
ENGRENAGEM
Taper of tailstock sleeve
MT3
Diameter tailstock sleev
32 MM
Max. swing over bed
310 MM
Max. swing over gap
450 MM
Max. swing over cross slide
180 MM
Distance between centres
910 MM
Long. feeds range
0,0527-1,2912 MM/REV.
Cross feeds range
0,014-0,3448 MM/REV.
Metric threads range
32 TIPOS/ 0,4-7 MM
Inch threads range
36 TIPOS/ 4-60 TPI
Spindle bore
38 MM
Travel tailstock sleeve
100 MM
Number of speeds
18
Taper spindle bore
MT5
Power input
1,1 KW - 1,5 HP
Spindle speed range
65-1810 RPM
DRO X-Y
NÃO
Voltage
400V-F3
Brand

BELFLEX


BELFLEX is an Abratools company's brand specializing in abrasive discs. With a great capacity to adapt to the market needs for over 30 years, BELFLEX is synonymous of quality.


See all product of BELFLEX
