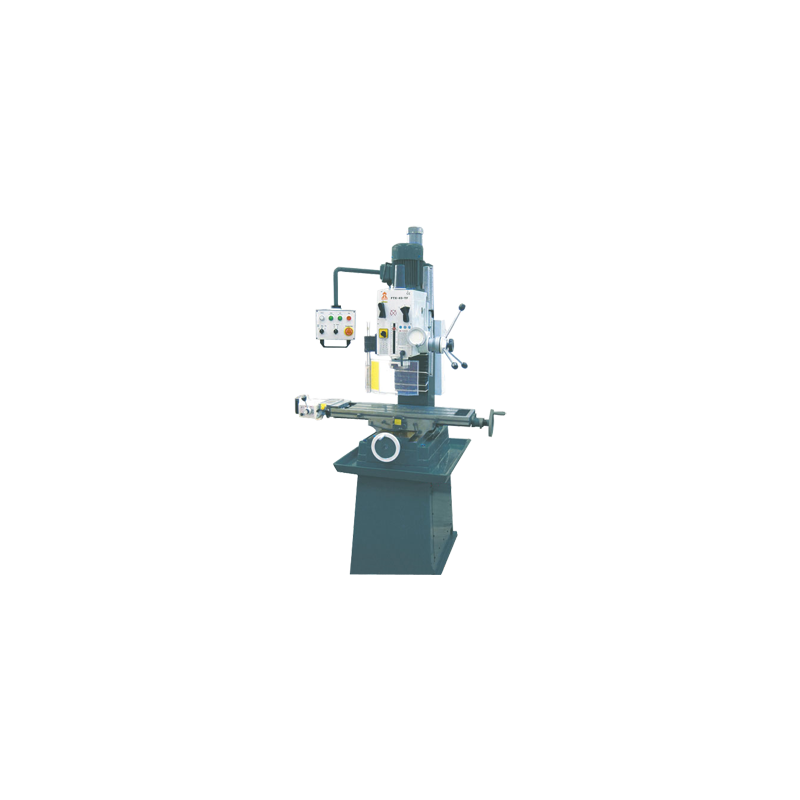

FORTEX Drilling Machines Bench Type FTX-45-TFS 400V

Ready to Ship
AB441355000
Includes:
- Cooling system;
- Chuck B16 / 1-13;
- Foundry pedestal;
- Automatic longitudinal advance;
- Reducer MT4-MT3;
- Reducer MT3-MT2;
- Toolbox.
equalizer Add to Compare
favorite_border Add to Wishlist
Share
Add to cart 40,00 € and shipping is free
Its large square cast pedestal ensures maximum rigidity;
- Articulated arm control box;
- The reduced tolerance of the spindle gears ensures silent operation;
- Equipped with low voltage safety circuit;
- Chuck guard with disconnector;
- Correct elevation of the head by the guides with rectified dovetail;
- Elevation of the manual or motorized head;
- Table lock on X-Y axes;
- Against conical keyways on X, Y, and Z axes;
- Large diameter spindle with tapered roller bearings;
- Rack and pinion calibrated for a precise advance;
- Screw depth lock;
- Table with variable speed automatic advance;
- Refrigeration system;
- Inclination head +/- 90º;
- Machines manufactured according to CE standards.
Ref
AB441355000
EAN
8423640093201
ASIN code
B01KODI3AQ
Brand
PUMA SAFETY
Drill capacity
40 MM
Weight
580 KG
Velocity
75-2000 RPM
Power input
1,1 KW -1,5 HP
Number of speeds
12
Voltage
400V - F3
Total Height
1750 MM
Number of Morse Cone
MT4
Max. face milling capacity
80 MM
Max. end milling capacity
32 MM
Table size
800 X 240 MM
Dimensions
1020 X 940 X 2100 MM
Distance spindle-column
260 MM
Max. distance spindle-table
470 MM
Maximum drill depth
120 MM
Vertical travel (Z)
300 MM
Longitudinal travel (X)
560 MM
Cross travel (Y)
230 MM
T Slot
3 X 14 MM
Transmission
ENGRENAGEM

FORTEX


FORTEX is an Abratools brand made up of machines and equipment for industry professionals.


See all product of FORTEX

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
Its large square cast pedestal ensures maximum rigidity;
- Articulated arm control box;
- The reduced tolerance of the spindle gears ensures silent operation;
- Equipped with low voltage safety circuit;
- Chuck guard with disconnector;
- Correct elevation of the head by the guides with rectified dovetail;
- Elevation of the manual or motorized head;
- Table lock on X-Y axes;
- Against conical keyways on X, Y, and Z axes;
- Large diameter spindle with tapered roller bearings;
- Rack and pinion calibrated for a precise advance;
- Screw depth lock;
- Table with variable speed automatic advance;
- Refrigeration system;
- Inclination head +/- 90º;
- Machines manufactured according to CE standards.

PRODUCTS DATA
Ref
AB441355000
EAN
8423640093201
ASIN code
B01KODI3AQ
Brand
PUMA SAFETY

SPECIFICATIONS
Drill capacity
40 MM
Weight
580 KG
Velocity
75-2000 RPM
Power input
1,1 KW -1,5 HP
Number of speeds
12
Voltage
400V - F3
Total Height
1750 MM
Number of Morse Cone
MT4
Max. face milling capacity
80 MM
Max. end milling capacity
32 MM
Table size
800 X 240 MM
Dimensions
1020 X 940 X 2100 MM
Distance spindle-column
260 MM
Max. distance spindle-table
470 MM
Maximum drill depth
120 MM
Vertical travel (Z)
300 MM
Longitudinal travel (X)
560 MM
Cross travel (Y)
230 MM
T Slot
3 X 14 MM
Transmission
ENGRENAGEM
Brand

FORTEX


FORTEX is an Abratools brand made up of machines and equipment for industry professionals.


See all product of FORTEX
