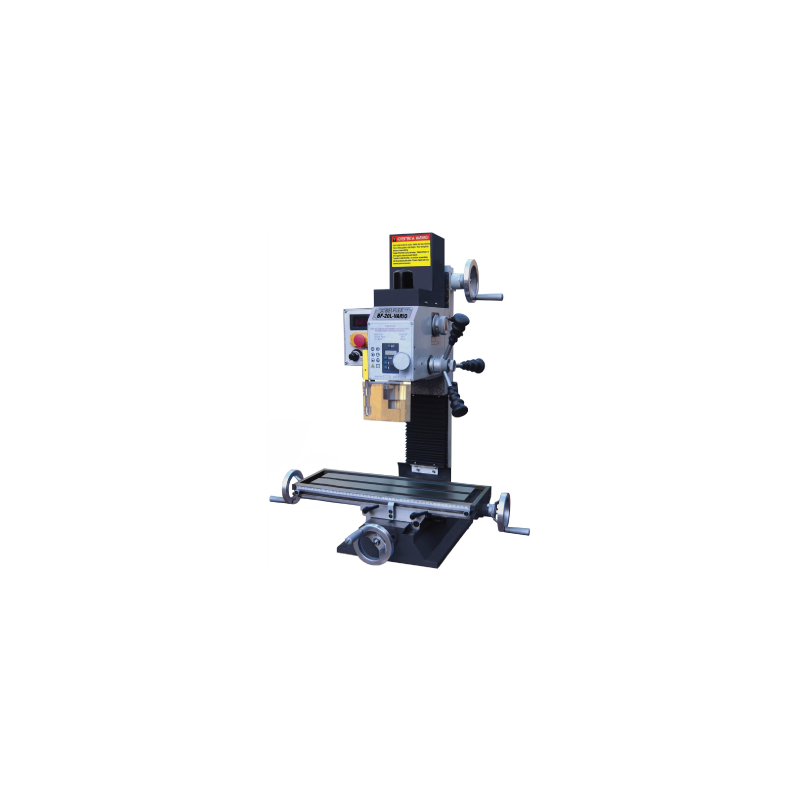

BELFLEX Drilling Machine BF-20L-VARIO

Ready to Ship
AB441445000
Included accessories:
- Tool box&tools;
- Chuck arbor MT2;
- Drill chuck.
Add to cart 40,00 € and shipping is free
- Variable speed Bench type Drilling Milling;
- Large worktable;
- Robust and accurate building;
- Dove tail;
- Head tilt +-90º;
- Depth digital display;
- Stand in option (441449000).
Ref
AB441445000
EAN
8423640965249
Brand
BELFLEX
ASIN code
B01KOMBEXA
Weight
113 KG
Dimensions
730 X 770 X 900 MM
Voltage
230V-F1
Drill capacity
20 MM
Velocity
50-2250 RPM
Power input
1,1 KW - 1,5 HP
Longitudinal travel (X)
160 MM
Cross travel (Y)
495 MM
Number of speeds
VARIÁVEL
Number of Morse Cone
MT2
Table size
700 X 180 MM
Distance spindle-column
170 MM
Vertical travel (Z)
250 MM
T Slot
3 X 12 MM
Transmission
ENGRENAGEM
Max. face milling capacity
63 MM
Max. end milling capacity
16 MM
Max. distance spindle-table
370 MM
Max. travel spindle
50 MM
Machine Dimensions
960 X 580 X 780 MM

BELFLEX


BELFLEX is an Abratools company's brand specializing in abrasive discs. With a great capacity to adapt to the market needs for over 30 years, BELFLEX is synonymous of quality.


See all product of BELFLEX

  • Security policy

    Safety payments

  • Delivery policy

    Worldwide shipping

  • Return policy

    Returns within 14 days

Description
- Variable speed Bench type Drilling Milling;
- Large worktable;
- Robust and accurate building;
- Dove tail;
- Head tilt +-90º;
- Depth digital display;
- Stand in option (441449000).

PRODUCTS DATA
Ref
AB441445000
EAN
8423640965249
Brand
BELFLEX
ASIN code
B01KOMBEXA

SPECIFICATIONS
Weight
113 KG
Dimensions
730 X 770 X 900 MM
Voltage
230V-F1
Drill capacity
20 MM
Velocity
50-2250 RPM
Power input
1,1 KW - 1,5 HP
Longitudinal travel (X)
160 MM
Cross travel (Y)
495 MM
Number of speeds
VARIÁVEL
Number of Morse Cone
MT2
Table size
700 X 180 MM
Distance spindle-column
170 MM
Vertical travel (Z)
250 MM
T Slot
3 X 12 MM
Transmission
ENGRENAGEM
Max. face milling capacity
63 MM
Max. end milling capacity
16 MM
Max. distance spindle-table
370 MM
Max. travel spindle
50 MM
Machine Dimensions
960 X 580 X 780 MM
Brand

BELFLEX


BELFLEX is an Abratools company's brand specializing in abrasive discs. With a great capacity to adapt to the market needs for over 30 years, BELFLEX is synonymous of quality.
